Billion Launches Indoor and Outdoor 5G Fixed Wireless Access Solutions to Accelerate the Upgrading of Communication Networks
In order to accelerate the upgrading of the communication networks, we take the advantage of 5G's high-speed and low-latency as well as 5G's fast and low-cost deployment to complete the last mile of the networks with Fixed Wireless Access.
To be in line with the network upgrade policies worldwide, Billion Electric Co., Ltd. (stock code: 3027) is launching the indoor and outdoor 5G NR routers, including an outdoor industrial grade router BiPAC 5701 with high efficiency as well as indoor router BiPAC 5501 supporting Wi-Fi 6 and VPN.
Both the 8232 and 8112 have a built-in 5G Sub-6GHz module with MIMO 4x4 functions and also support NSA/SA mode to provide dual connectivity with existing LTE networks.
By its higher downlink and uplink transmission speed and broader network coverage, 8232 & 8112 can assist the customer in actively expanding the solution of mobile communication network deploying.
The outdoor 8232 integrates the latest 5G Sub-6GHz module and high-performance dual-polarized MIMO antennas to provide powerful network connections. The equipped industrial-grade IP67 waterproof and dustproof enclosure with built-in 6KV surge protection and 15KV ESD feature robust protection against lightning or ESD surges while supporting PoE for power supply to provide a safe, stable, and high-performance network access service.
The indoor 8112 provides 5G NR module and GbE WAN to switch flexibly between Ethernet and mobile communication while the failover/failback function provided by the router can ensure stable Internet connectivity. With the integrated Wi-Fi 6 2.4GHz and 5GHz DBDC AP, the combined throughput can reach up to 3000 Mbps data rate.
Billion launches the 5G mobile communication router series integrating the latest 5G and LTE to provide a network service with lower latency and higher speed for the customer. To meet the growing consumer demand, and further improve operational efficiency, we aim to assist operators in quickly deploying high-speed and convenient 5G network services, improving network deployment flexibility, and expanding coverage.

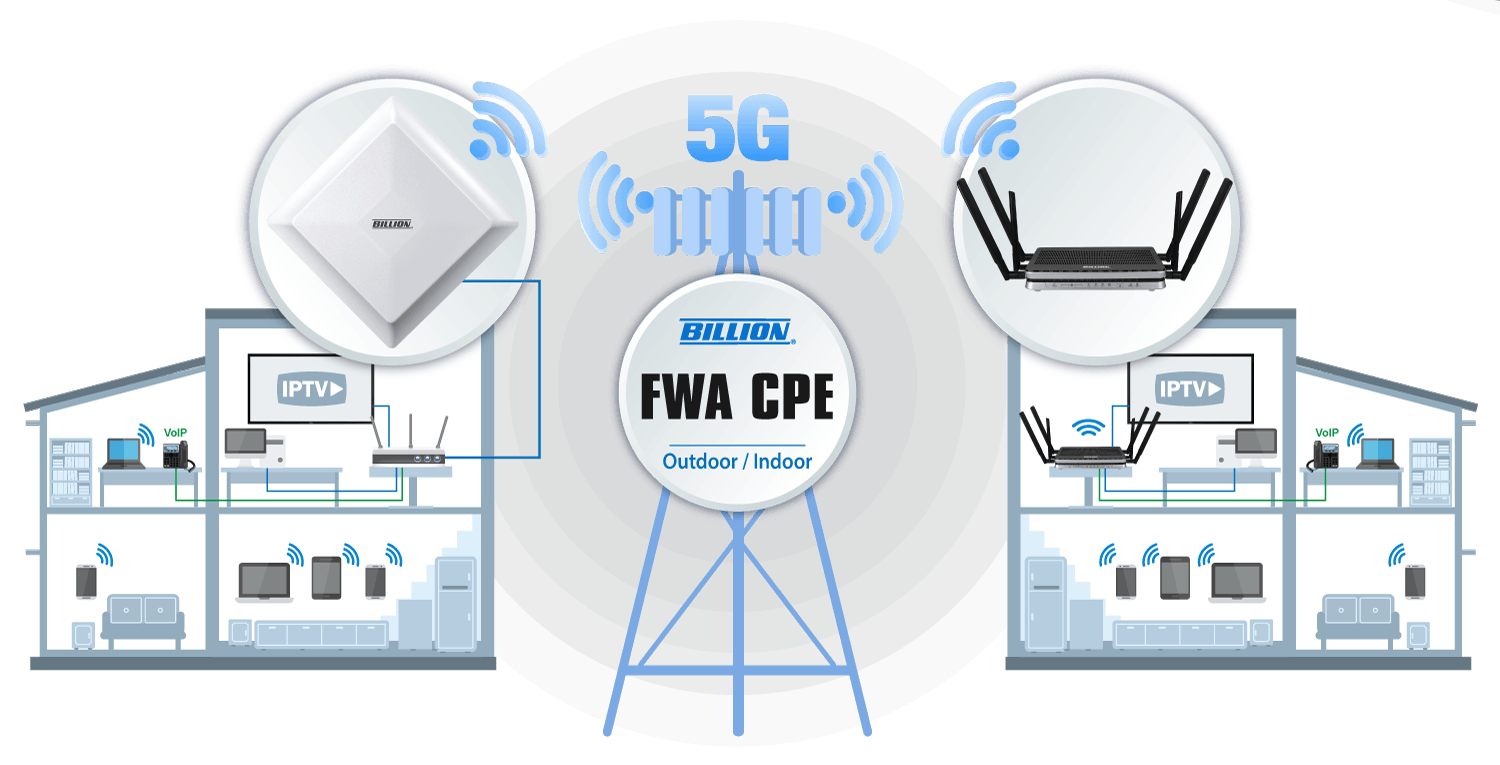

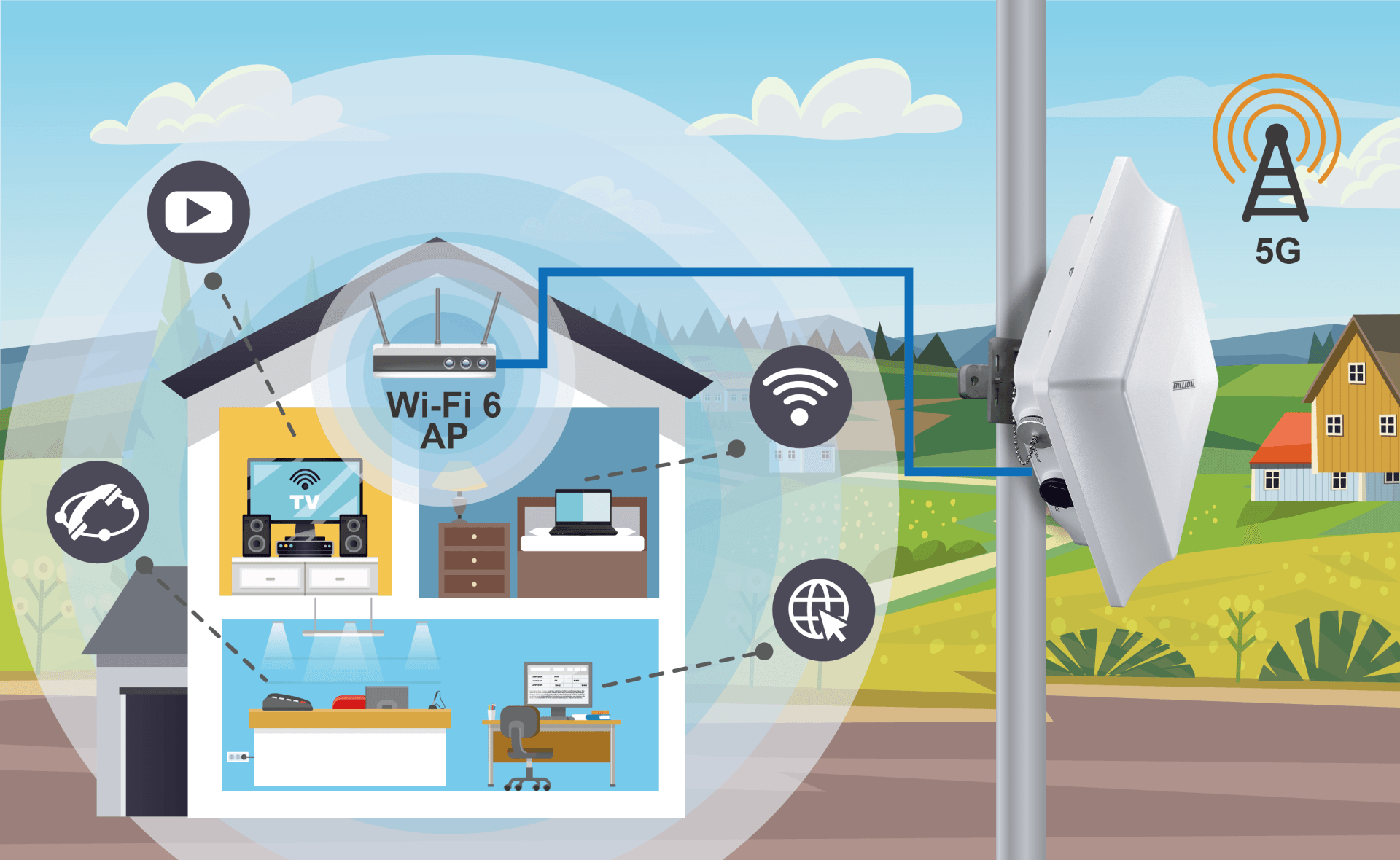

The ideal solution for Fixed Wireless Access, last-mile access, residences, urban areas, and the underserved
The 8232 integrates the newest 5G NR(sub-6G) module and high-performance dual-polarized MIMO 4x4 antennas, making it the fastest commercially available outdoor router. BiPAC 5701 is a high performance, robust connectivity, and a reliable platform.
- Ultra High Speed
- Fixed Wireless Access
- An Alternative Solution for Last Mile Access
- Mission-Critical & Performance Intensive Networks
- Industrial Connectivity Applications
- Suburban and Rural Environments
5G NR - The Newest Generation Standard of Wireless Broadband
With 5G NR network connectivity, users can enjoy an unprecedented Internet accessing experience.
Enterprise Class Secure VPN Connections
The 8232 supports VPN (Virtual Private Network) protocols for business users to establish private encrypted tunnels over the public Internet to secure data transmission between offices.
Central Management System
The 8232 supports CWMP(TR-069) and Billion CMS system, it is easier to remotely control and manage 8232 installed outdoors. Enabling users to minimize deployment, lower supporting service expenses, and maximize operational efficiency.
Industrial-Grade Design for Rugged Environment
The 8232 is an industrial-grade design with an IP67 rated enclosure to withstand the extreme weather conditions. Passed Wind Tunnel Tested, successful operation up to 132mph (F2 Tornado 113-157mph). Also, built-in ±6K surge(K.21) and ±15KV ESD(EN 61000-4-5) protection design protects against storm/lightning surges and extend operating temperature range to -40°C ~ 60°C. To ensure that the BiPAC 5701 will run reliably in rugged environment.

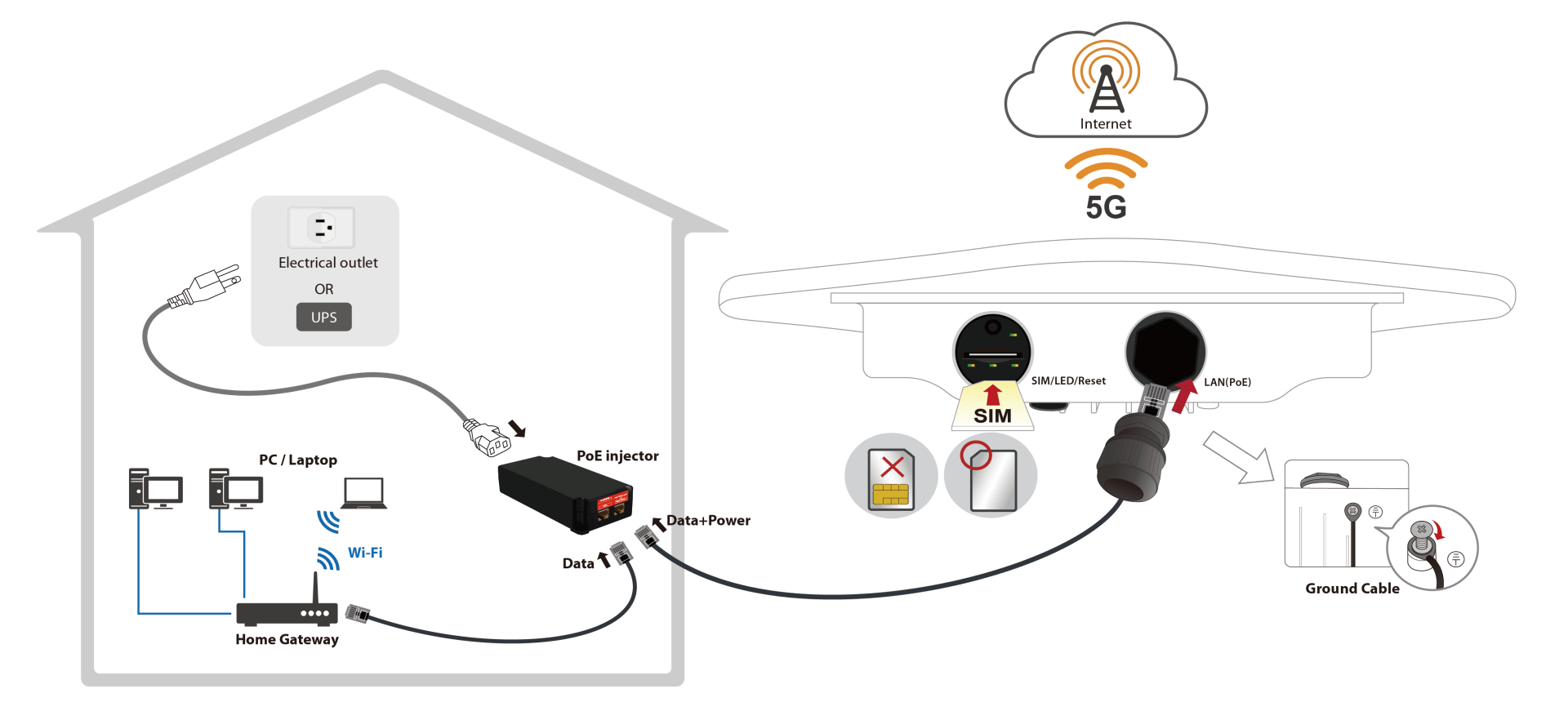

Easy Installation with PoE Support
Easy Installation is realized with integrated Power over Ethernet (PoE) support, eliminating the need for separate power and data cables.

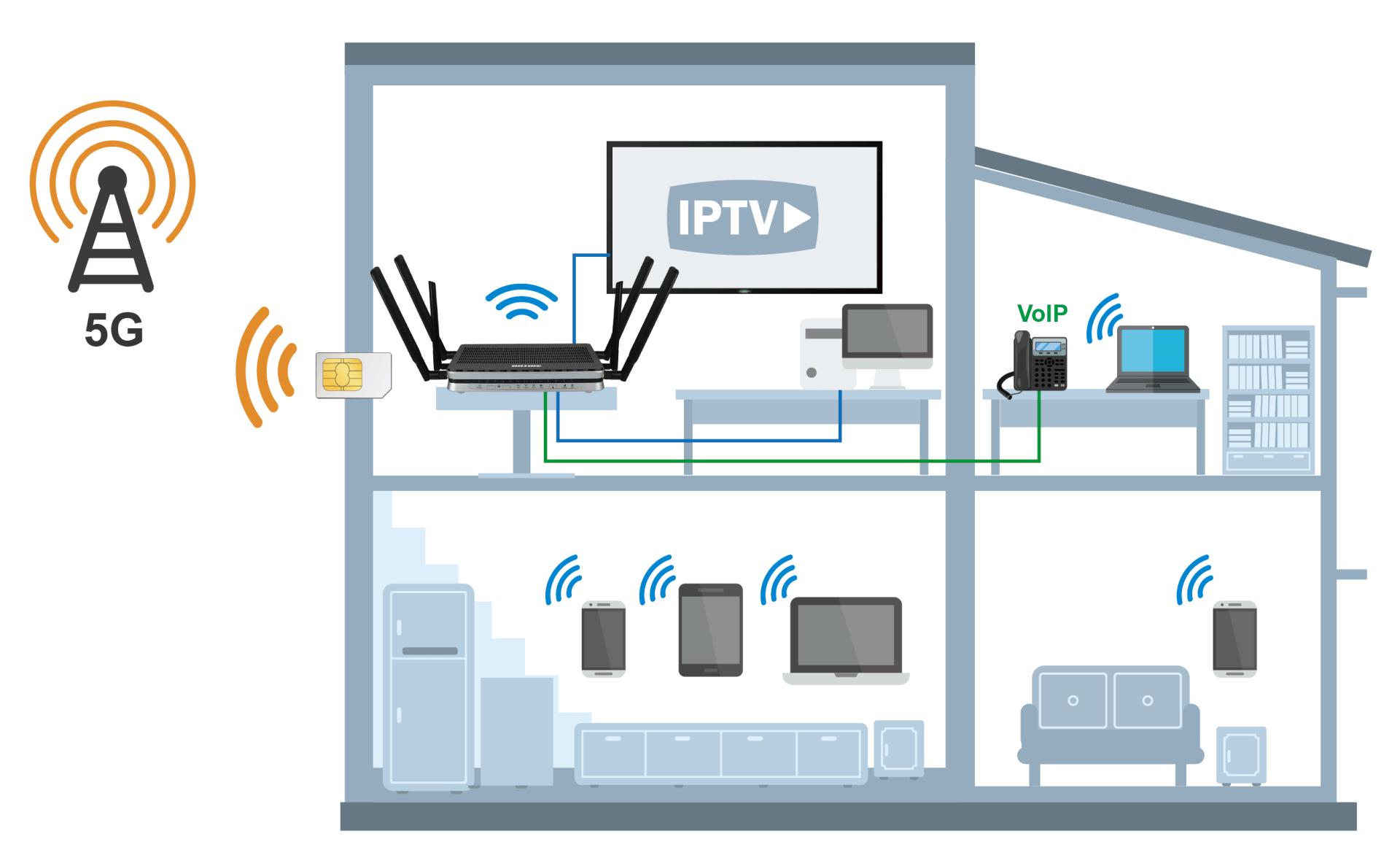

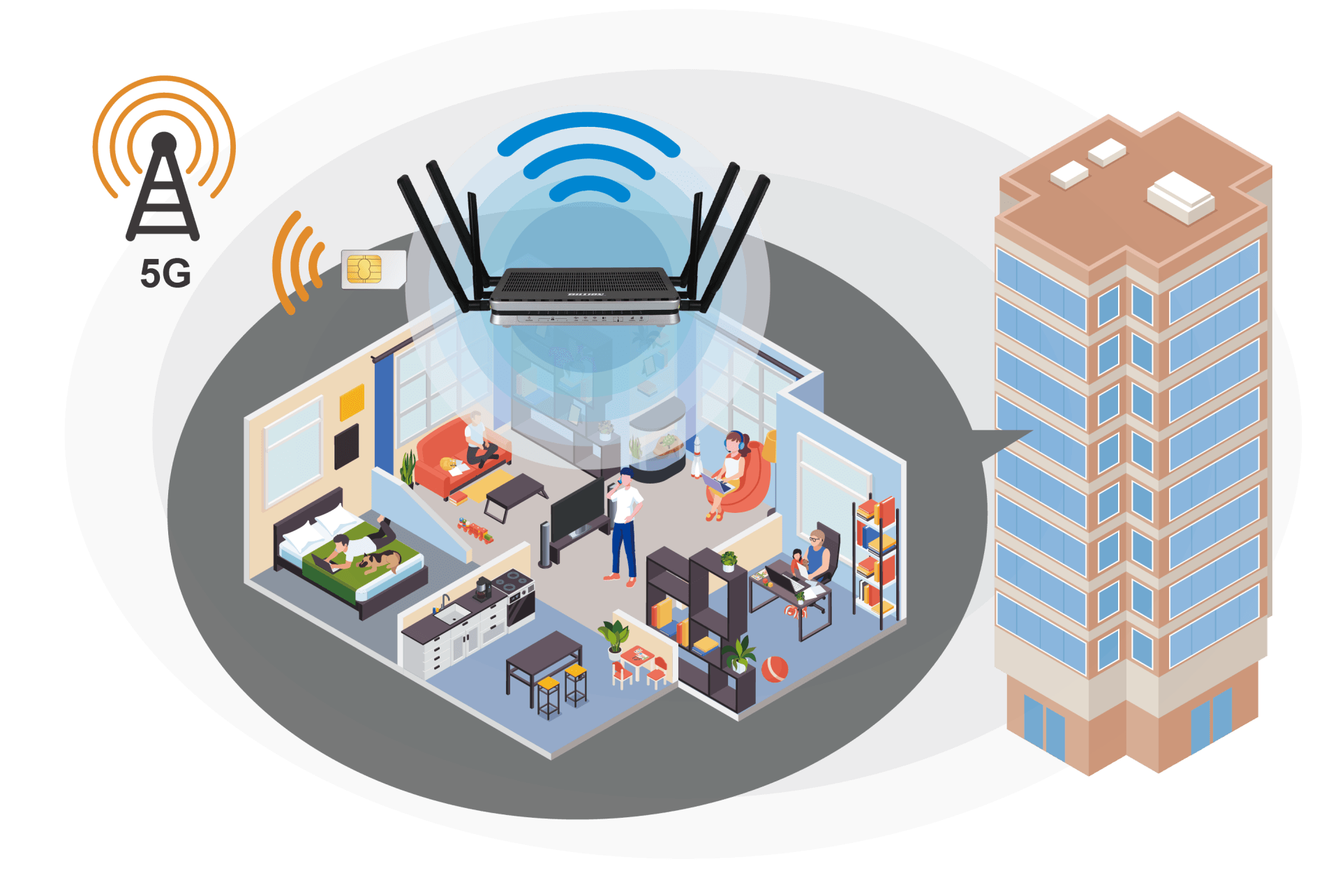

With the newest 5G NR network connectivity, users can enjoy an unprecedented Internet accessing experience
8112 supports 5G NR(sub-6G), the newest generation standard of Wireless Wide Area Network products.
Embedded with 5G NR module backward compatibility with 4G LTE, also provides Gigabit Ethernet WAN interfaces, with an integrated Wi-Fi 6 2.4GHz and 5GHz DBDC AP and 4-port Gigabit Ethernet LAN, enables high-speed and secured Internet connectivity for home, SOHO, and enterprise users.
- Ultra High Speed
- Fixed Wireless Broadband
- An Alternative Solution for Last Mile Access
- Wi-Fi 6 2.4GHz & 5GHz DBDC AP
High Performance
- High performance 5G NR(sub-6G) module
- Gigabit Ethernet WAN and LAN
- Dual-Band wireless reaches 3000 Mbps
High Availability
- Support multiple 5G NR(sub-6G) frequency bands
- Dual-WAN interfaces - 5G NR and Gigabit Ethernet WAN
- Wi-Fi 6 2.4GHz & 5GHz DBDC AP
- Multiple wireless SSIDs with wireless client isolation
Secure VPN Connections
- Embedded VPN with powerful encryption
Quality of Service(QoS)
- Rate Limited or Guaranteed
IPv6 Support
- IPv4, IPv6, IPv4/ IPv6 dual stack
CWMP(TR-069)
- Supports CWMP(TR-069)
