8355

5G uCPE (Universal CPE)

The 8355 5G Universal CPE (uCPE) features an innovative design enabling indoor and outdoor installation flexibility for optimal location placement for the best signal reception. The 8355 5G uCPE offers exceptional performance with an industry-leading MIMO antenna design, ensuring capacity and coverage regardless of placement. Powerful multi-core CPU and sub-6 GHz carrier aggregation up to 4CA DL and 2CA UL deliver ultra-high data rates and lower latency for the ultimate subscriber experience.

Key Features & Benefits

Redefining Fixed Wireless Access

The 8335 supports 5G Sub-6 GHz and 4G/LTE with dual connectivity modes and standalone access (SA), benefiting from all 5G capabilities. Non-standalone access (NSA) is attached to a 4G network up to a gigabit speed to ensure a quick and flexible deployment to any 5G NR or LTE network.


Subscriber Self-Installable

Many subscribers prefer the convenience and flexibility of self-installation over waiting for a technician to come, and operators benefit from reduced operational costs and faster deployments. Our mobile app makes the setup of the 8355 simple. Customers are guided through where to position the 8355, activation, and connect to the network.


Advanced MIMO Antenna Technology

Operators need antenna technology to meet capacity and throughput demands in challenging deployment scenarios such as Fixed Wireless Access (FWA). The high-gain embedded 4X4 MIMO directional antenna ensures increased capacity, maximum bandwidth, and extended coverage.


BECentral® CloudEdge Services

BECentral® CloudEdge is an Industry-leading cloud-based service platform designed to accelerate LTE and 5G Wireless WAN connectivity for deployments of any scale. The platform enables zero-touch provisioning and provides visual dashboards with real-time analytics, detailed reporting, historical analysis, performance monitoring, proactive alerts/notifications, and API extensibility for 3rd party integration.

Ideal Use Cases

  • Fixed Wireless Access (FWA)
  • Last Mile Connectivity
  • Private Networks
  • Residential or SMB Users
  • Remote Workers
  • Delay Sensitive and Bandwidth Intensive Applications

Supported Frequency Band*1

• 5G NR sub-6 GHz (3GPP Rel-16)

  EU version:

  NSA/SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78

  NA version:

  NSA:

  n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41, n48, n66, n70, n71, n77, n78

  SA:

  n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78

  Carrier Aggregation:

  4CA DL / 2CA UL

• 4G LTE (CAT 19 DL / CAT 18 UL)

  EU version:

  FDD: B1, B3, B5, B7, B8, B20, B28, B32

  TDD: B38, B40, B41, B42, B43

  NA version:

  FDD: B2, B4, B5, B7, B12(17), B13, B14, B25, B26, B29, B30, B66, B71

  TDD: B38, B41, B42, B43, B48

  Carrier Aggregation:

  5CA DL / 2CA UL

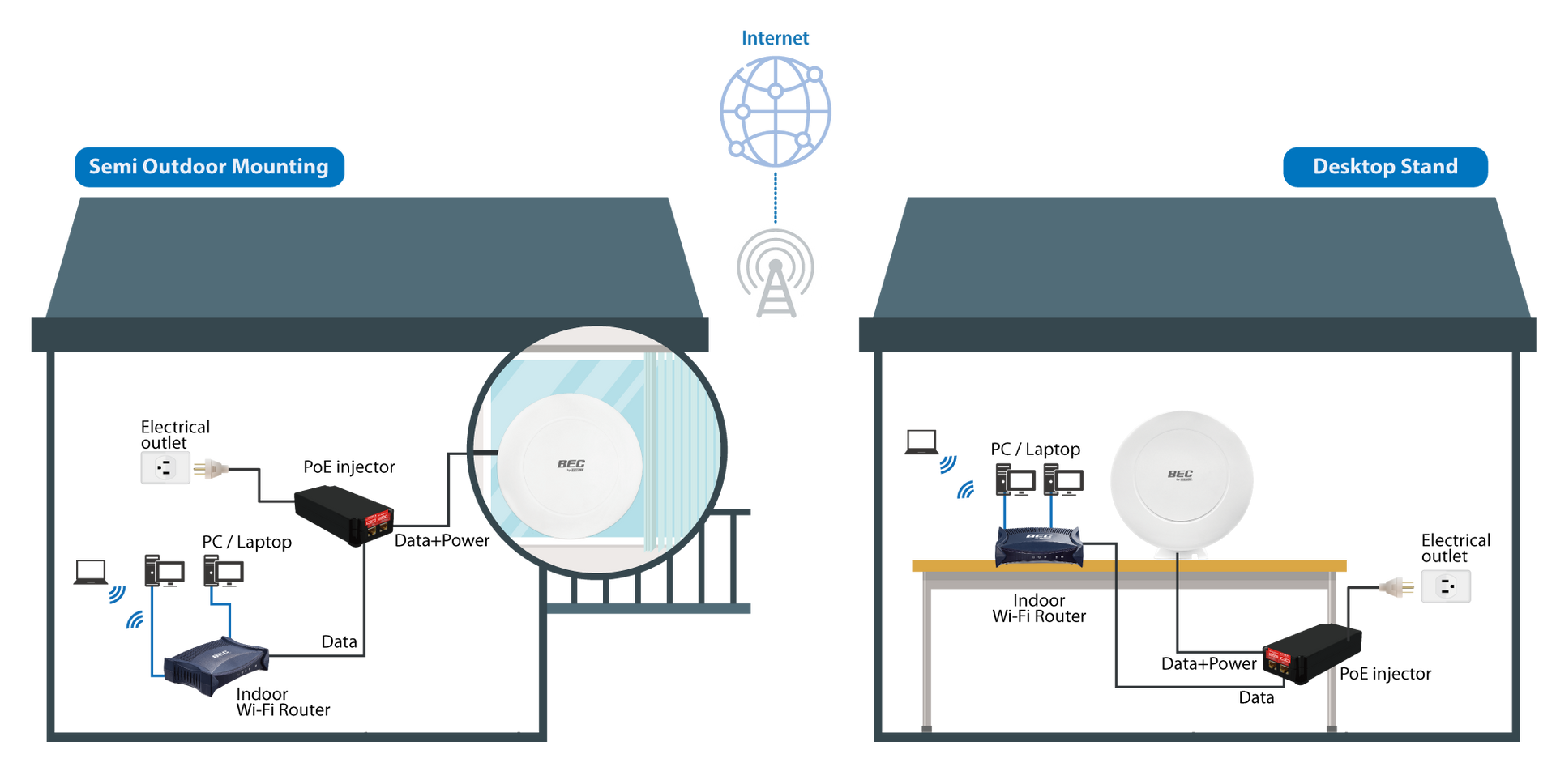

 Application Diagram

Specifications


◼ Network Protocols and Features

• IPv4, IPv6*2

• Dual APN*2

• Keep Alive

• NAT, Virtual Server, and DMZ

• Static Routing, Dynamic Routing (RIP-1/2)

• SNTP, DNS relay

• Universal Plug & Play (UPnP)

• Supports DHCP server/ client


◼ Firewall

• Built-in NAT firewall

• Stateful Packet Inspection (SPI)

• Prevents DoS attacks including Land Attack, Ping of Death, etc.

• Access Control

• IP Filtering, MAC Filtering

• VPN pass-through


◼ Management

• Password protection for system management

• Web-based GUI for remote and local management

• Firmware upgrade and configuration data backup and restore via Web-based GUI

• TR-069(CWMP)*2, SNMP

• Syslog monitoring

• BECentral® Cloud-Based Remote Management


◼ Setup and Installation

• Seperate and dedicated Wi-Fi 4 radio


Hardware Specifications


Physical Interface

•  2.5Gigabit Ethernet port (w/ 802.3at PoE PD) x1(One)

• Embedded eSIM x1(One Optional )*2

• 2FF mini-SIM slot x1(One) and embedded SIM (eSIM)*optional

• Reset Button x1(One)

• LED Indicators: Power/Boot, LAN(PoE), 5G Signal, Internet

• Wi-Fi 802.11n 2.4GHz 1x1 (for Installation only)


External Connector

• One(1) Ethernet port: RJ-45

• One(1) SIM slot: 2FF mini-SIM


IP Rating

• IP-65 grade enclosure


Physical Specifications

• Diameter: 230mm

• Height: 55mm


Mounting

• Pole mount, Wall mount, Windowsill, Desktop


Operating Requirements

• Operating: -40°C to 55°C

Notes:

1. The 5G NR/ 4G LTE is dependent on your local service provider.

2. Only upon request for Telco/ ISP tender projects.

3. Specifications in this datasheet are subject to change without prior notice.
